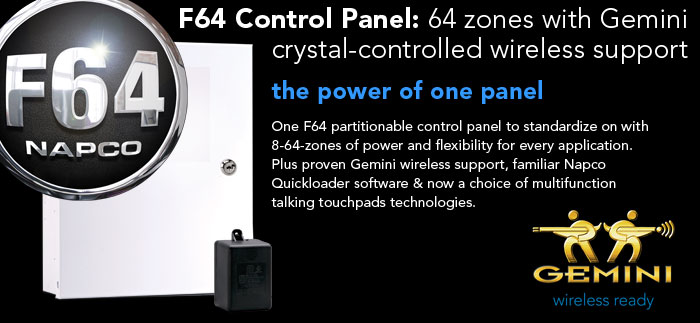

F64 Panel

Flexible F64 features:

  • 8 Hardwire or wireless zones on board, programmable by area
  • Expandable up to 64 zones (through EZM multiplex modules and/or 4-zones built-in at each touchpad
  • Supports up to 4 areas
  • 400 event log; viewable at the touchpad
  • F64 supports up to 7 touchpads (F64CODE-K1VPS and -K1V as well as FreedomCode-free F64TP models; these may be intermixed in the system, too. See WI1640B).
  • Supports 2-wire fire (2 zones) & 4-wire fire
  • Supports Gemini Transmitters using 8, 6, 96 point Gemini Receivers
  • Supports 3 outputs; up to 16 external outputs (RB/RM3008)
  • Programmable Telco line-cut and bell-cut
  • Reports alarms, restores and troubles by zone.
  • One interior zone group.
  • Two chimes by zone; programmable duration.
  • 2 PGM outputs.
  • PCD-WINDOWS (v5.6.1 or higher) - Familiar Napco PC programming and PC-preset
  • All major communicator formats: SIA, Point ID, 4/2, etc.
  • Fuseless, maintenance-free operation
  • Three 20-digit telephone numbers.
  • Backup reporting; Double reporting; Split reporting.
  • 64 User Codes with opening/closing -reporting by user.
  • AC failure reporting with programmable report delay.
  • Supervised telephone line with 60 second delay.
  • Pager capability
  • SIA CP-01 features
