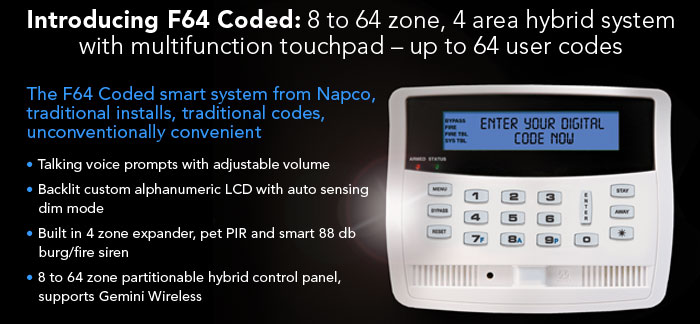

F64

Save time and money and streamline your installs with easy installs with F64 Coded Touchpads, each with built in 4 zone expander

The new, F64 coded touchpads feature traditional digital user codes, smart custom alpha displays & user-friendly talking voice prompts. Deluxe K1VPS model also includes built-in siren and pet-immune PIR as well as an on-board 4-zone expansion module to save on equipment, install time & wiring homeruns. The F64 control supports up to 7 touchpads making it ideal for any installation application.

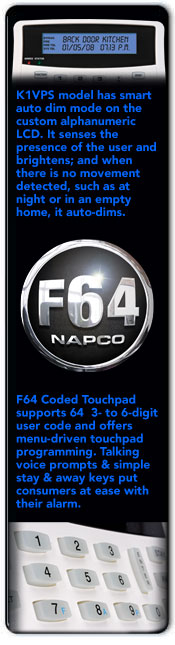

Two smart F64CODED touchpads

  • F-64CODE-K1VPS & F-64CODE-K1V – not just another pretty face:
  • Built-in 4-zone expansion module
  • Oversized backlit keys
  • Log viewing
  • Optional temperature display
  • Programmble panic, ambush and chime functions (2 chimes by zone)

Additional F-64CODE-K1VPS features:

  • Built-in 88db burg/fire alarm siren (temporary hush mode)
  • Built-in wide-angle 25' pet PIR and smart occupany sensor

F64 Coded Kit & Accessories Ordering information:

F-64CODEKIT1 Complete F64 Coded Kit: Coded talking touchpad w/built-in siren, PIR, downloadable 8 to 64 zone hybrid control, plug-in transformer.

F-64CODE-K1VPS Additional coded multifunction talking touchpad with built-in siren & PIR and smart display, for use with KIT1 or 2.

F-64CODEKIT2, Kit as above, where talking touchpad does not include built in Siren and PIR/occupany sensor.

F-64CODE-K1VS Additional coded talking touchpad (NO built-in siren & NO PIR, for use with KIT2 or 1.

F-64 System options:

GEM-TEMP64 Indoor or outdoor temperature sensor displays temperature on touchpad display

GEM-EZM4/8 4 to 8 zone EZM multiplex expansion module

TRF11 Transformer, 16.5Vac/40VA, Class 2

TRF14 Transformer, 16.5Vac/50VA, Class 2

RBAT4 4Ah 12VA Battery

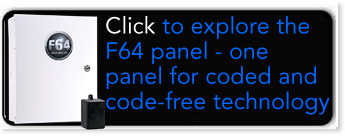

F64 Panel
