  • Max Fire RMR for You & Less Operational Expenses for Them on ALL FACUs 12V/24V, using 5G LTE-M Cellular Fire Alarm Reporting vs. POTs Landlines
  • One High-Performance Model to Stock on Your Truck for Commercial Fire Communications: Both Verizon & AT&T plus sole cell-only, dual path cell/IP reporting or new Super Dual UL 864 Supervised Cell-Only Dual Path
  • Easy Automatic Cell Network-Select for Max Signal Strength & Easy ID Cell Indicators, Red (VZ) / Blue (AT&T) inside

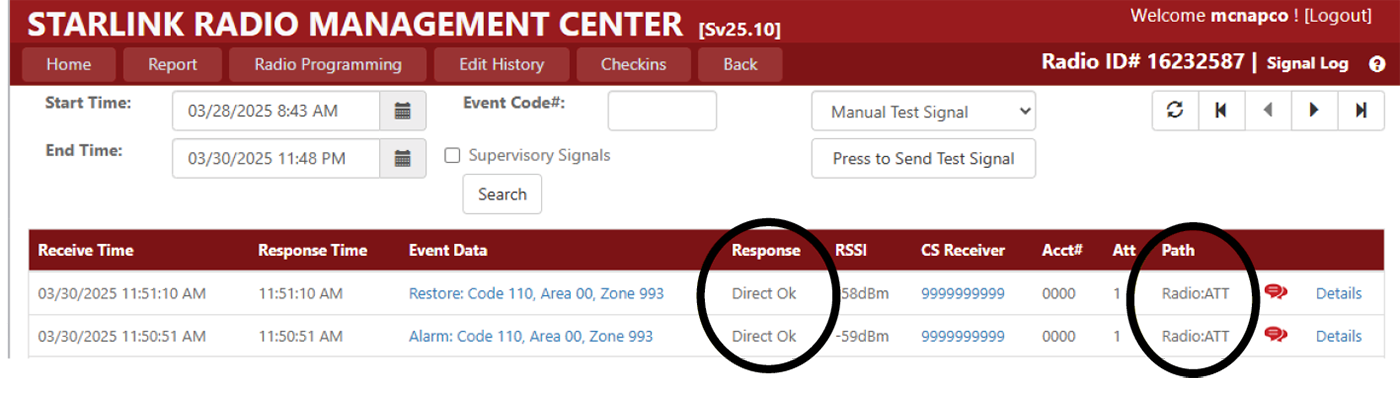

  • See /Set SIM Status Remotely - using any PC or smart device
  • Faster, Simpler to Install, When Techs are Scarce; NO panel reprogramming,Quick-Connect FACU Modular Jacks, NO additional power supply
  • No Hidden Extra Costs: Self-Supervised, 4 EOLR inputs & 2 Form C-Outputs; Plus, 2 High-Performance Antennas Included
  • HW CLSS Support
  • New Lower Cost, Lower Rates & Instant Rebate for Napco Pros - Nothing to send in
  • UL Listed End to End: UL 864 Listed StarLink FIre Communicator >> UL 864 Napco NY NOC w/ PA Failover >> Any Central Station's UL Receiver

  • ORDERING INFORMATION STARLINK FIRE MAX2 DUAL SIM/DUAL PATH 5G FIRE COMMUNICATOR
  • SLE-MAX2-FIRE Universal Fire Communicator, Dual SIM, Dual Path, Panel-Powered Technology, ABS Plastic Housing
  • SLE-MAX2-CFB Universal Fire Communicator, Dual SIM, Dual Path, Panel-Powered Technology
  • SLE-MAX2-CFBPS Universal Fire Communicator, Dual SIM, Dual Path, Direct AC Power 120VAC Metal Housing w/ Provision for Plug-in TRF12 XFormer, 16VAC,20VA (w/ provision for backup battery.)

  • OPTIONS/ACCESSORIES:
  • SLE-WIFI-MODULE: Optionally connects supported dual path models to Internet via WiFi, eliminating Ethernet cable connection. Requires 7AH battery.(see WI2191)
  • SLE-ANTEXT 04/30/50/75/100: StarLink Omni-X Optional Extended Range Marine-Grade Complete Antenna Kit, w/ all hardware & ground fault isolator plate, and varying lengths of ultra low-noise LMR 300 cable from 4' (04) to 30' (30) all the way to 100' (100), last numbers in SKU indicate cable length.
  • SLE-FIRE-VR: FACU Voltage Drop Kit, maintains safe input voltage < 27.5VDC
  • TRF12: Plug in AC Transformer, used w/ SLE-MAX2-CFBPS model, 16.5V / 20VA (use subject to local code).
  • GEM-TAMPERKIT: Tamper switches and screws to protect metal housing where required.
  • SLE-ULPS-R: Power Supply, for installations where FACU cannot provide Aux Power.
  • SLE-FMBB: Opt.Metal Cable Management Backbox for surface mounting plastic StarLink communicator models adjacent to FACUs on same plane. Radio easily snaps in on 4 stand-offs, no rewiring. Red metal enclosure w/ 3/4" cable knockouts; 2 Connectors & 4" Conduit, supplied.

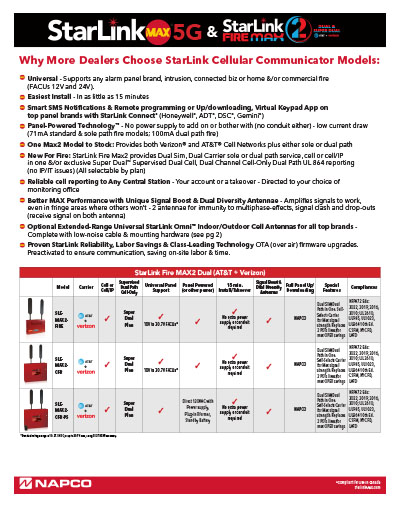

  • DOWNLOAD STARLINK FIRE MAX 2 SPEC SHEET
    THE SUPER DUAL DIFFERENCE
    For More on Instant Pro Rebate

Starlink Max
StarLink Max 5G Cellular – More Models & More Reasons Why
StarLink MAX Fire 5G LTE-M Sole or Dual Path Cellular Commercial Fire Alarm Communicator
Starlink Max
StarLink MAX Fire 5G LTE-M Sole or Dual Path Cellular Commercial Fire Alarm Communicator
Starlink Max Starlink Max Starlink Max

Replace Any Radio or 2 POTS Lines on Any 12V/24V FACP

  • Replaces 2 POTS lines per FACP to save accounts response time & thousands of dollars per year
  • For Universal use with all 12V-24V Fire Alarm Control Panels (FACPs) that communicate using Contact ID and 4/2
  • Panel-Powered Technology - No extra power supply, No extra conduit.†† Low current draw 100mA, typ.
  • 5G LTE-M on Verizon® and AT&T® Cyberprotected Multibillion Dollar Network, for longest cellular lifespan available for security reporting applications
  • Now One Model is Sole or Dual Path with Cellular + Internet Support Option Just Choose Cell or Cell/IP Service Plan to meet any requirement
  • Easiest 15-Minute Installation & Saves Equipment - Includes 4 programmable EOLR zone inputs; 2 Form C Relay outputs; Self-supervised on 4 wires (no extra supervision modules); plus, 2 Telco jacks for EZ FACP-connection
  • Code-Compliant full event cellular reporting from any FACP panel brand, virtually anywhere nationwide
  • Reports to any Central Station. NO special equipment. NO radio activation fee.
  • Proven StarLink Reliability & Best 5G LTE-M Performance – Works where others can't - Signal Boost Circuitry & unique dual-diversity twin antennas, maximizing signal acquisition and eliminating the multiphase-effect signal-clash/drop-outs single-antenna units are prone to
  • Preactivated – No-Delay Activation Speeds installation time, even during peak periods
  • Over-the-Air Upgradeable Firmware
  • Cost-Saver Tradeup Program - Unparalleled savings, for new and retrofit installations, replacing POTS, old radios, sunset networks and even new installations
  • Free FACP-Saver App - Smartphone Pro Sales Tool for calculating /demonstrating account's cellular cost-savings with dealer by number of lines & locations vs. copper POTs lines leased from phone co. Free download on Apple Store or Google Play.
  • Compliance – One Model Does Sole or Dual Path Cell or/IP: NFPA 72 Eds: 2019, 2016, 2013, 2010, 2007; UL864, 10th Ed., UL1076, UL1610, UL985, UL1023, NYCFD; CSFM; LAFD: "Consult with AHJ & Tech Docs /Model".

    Ordering Information:
  • SLE-MAXAI-FIRE Dual Path Communicator, Cell/IP, AT&T® 5G LTE-M, ABS. Low current draw, panel-powered technology (saves extra power supply and conduit); plus quick connect telco jacks, 3 EOLR zone inputs and 2 Form C Really outputs (saves extra supervision module)
  • SLE-MAXVI-FIRE Dual Path Communicator, as above, but connected by Verizon® 5G LTE-MTM
  • SLE-MAXAI-CFB Metal Version of SLE-LTEAI-FIRE, Dual Path Cell/IP, red locking metal enclosure on AT&T® 5G LTE-M Network, powered directly from control panel
  • SLE-MAXAI-CFB-PS Dual Path metal model, as above.
  • SLE-MAXVI-CFB Metal Version of SLE-LTEVI-FIRE, Dual Path Cell/IP, red locking metal enclosure on Verizon® 5G LTE-M Network, powered directly from control panel
  • SLE-MAXVI-CFB-PS Dual Path metal model, as above.
  • Download SLE-ANTEX Optional Omni Antenna Spec Sheet

  • DOWNLOAD STARLINK MAX FIRE SPEC SHEET (A823)
    DOWNLOAD STARLINK MAX FIRE & FIRELINK SPEC SHEET (A813)

Starlink Max
Starlink Max
Proven to Work Even Where Others Won't
2 Antennas Are Better Than 1 + Signal Boost®
Starlink Max Starlink Max

StarLink Patented Dual Diversity Antenna Design & Signal Boost
Ensures Superior 5G Performance

Best 5G LTE-M Performance – Works even where others can't – StarLink's Signal Boost Circuitry & unique dual-diversity twin antennas

  • Patented Twin Antenna Design –
    Ensures greater range & reliability, maximizing signal acquisition (pats. pending)
  • Switching Antenna Design - Sends/Receives Signals on both antennas for null-avoidance & maximum reliability
  • Eliminates the multiphase-effect signal-clash/drop-outs single-antenna units are prone to
  • Signal Boost Technologycleans and amplifies alarm signals and wave shapes for unprecedented dependability even in fringe remote areas
  • Verizon® and AT&T® Network coverage throughout North America
Starlink Max
StarLink MAX Connect Universal Sole or Dual Path Cell/IP Communicator
UP/Downloads | Remote Smart Services | Full Support for Honeywell, DSC & Napco
Starlink Max Starlink Max Starlink Max

Takeover & Connected Home/Smart Biz
Upgrade For Virtually Any Account

Upgrade Virtually Any Security System out there, in Minutes!
  • Connect to Report Alarms on Nation's Most Secure Multi-Billion Dollar Cell Networks
  • Connect with Today's Smart Cellphone-Centric Resi & Commercial Accounts for More Value, RMR & Retention
  • Connect All at Once, with Award-Winning All in-One 5G LTE-M Solution:

  • 5 in 1
    1. Universal Sole or Dual Path Communicator: IP &/or Cellular Alarm Dual Reporting (cell or cell/IP, selectable on choice of plans)
    2. Full Programming Support for Growing List of Major Panels & Brands, Full Up/Downloading, i.e., Honeywell, DSC, Napco & more‡ Hand Programming ADT
    3. Full Keypad Smart App
    4. Smart Bus-Based SMS/MMS Notifications Powered by Gemini App
    5. "Z-Hub Option" adds Z-Wave Device Control for Connected IoT & Smart Scenes
One and Done: Takeover & Smart System Upgrade for Virtually Any Account:
  • Upgrade Accounts' Alarm Reporting from older networks to AT&T® or Verizon® 5G LTE-M Sole or Dual Path Cellular &/or IP for longest cellular lifespan available
  • Generous Trade-up Incentive available when you upgrade from old radios, networks or landlines***- See napcosecurity.com/starlink
  • Upgrade/Takeover Virtually Any Existing Alarm System – Provide the Very Latest Features & Add Cellular Comms., & the Smartphone Remote Interactive Control Today's Accounts Want
  • Use with Your Favorite Panel Brand(s) & Any Central Station
  • One Model is Sole or Dual Path with Cellular + Internet Support Option
  • Easy Installation in Minutes, Panel-Powered & Real Equipment Savings – 5-in-1 Functions from One Unit
  • Proven StarLink Reliability & Best 5G LTE-M Performance – Works where others can't - Signal Boost Circuitry & unique dual-diversity twin antennas, maximizing signal acquisition and eliminating the multiphase-effect signal-clash/drop-outs single-antenna units are prone to
  • Full Remote Up/Downloads with Same Original Panel Program on Top Brands
  • Smart Remote Virtual Keypad & SMS/MMS Text & Live Video Notifications
  • Plus Get Support for Any Brand/Any Panel***
  • 'Z-Option' Models also include Built-in Z-Wave Device Smart Hub Control
  • Compliance – Agency listed to the following standards: UL985, UL1610, UL365, UL1076

    Ordering Information:
  • SLE-MAXV-C Universal Cell/IP Communicator & Remote Services Hub, Connected by Verizon 5G LTE-M, for cell & IP alarm reporting, Full native download support & emulated remote keypad, bus data & full notifications. for Honeywell DSC, Napco panels. (Verizon®, UL Listed model)
  • SLE-MAXA-C Cell/IP Hub, as above, but on AT&T® 5G LTE-M Network.
  • SLE-MAXV-Z Universal Cell/IP Communicator & Hub, as above, plus Z-Wave Device Control built-in, on Verizon® 5G LTE-M Network. (Verizon, UL Listed model)
  • SLE-MAXA-Z Same as above, plus built-in Z-Wave control on AT&T® 5G LTE-M 5G LTE-M Network.
  • SLE-MAXV-CBTF-C Mercantile model, in metal locking enclosure with plug in AC transformer, Connected by Verizon® 5G LTE-M (for electrical specs see WI2315BLF.) (Verizon, UL Listed model)
  • SLE-MAXA-CBTF-C Mercantile model, as above, on AT&T® LTE Network.
  • IBRIDGE APP w/ MESSENGER App for Smartphones/devices available on iTunes® or Google Play® for Connected Home Control features and iBridge Messenger SMS/MMS Notifications
  • Free customizable tri-fold brochures for Connected Home (A712) and Assorted Smart Business (A736, A740, A741);A719B Smart Business StarLink Connect Handout
  • Download SLE-ANTEX Optional Omni Antenna Spec Sheet

  • OPTIONAL ACCESSORIES:
  • SLE-WIFI-MODULE - Optional plug-in module for connection to the Internet† via a wireless (Wi-Fi) link, eliminating a wired Ethernet cable (for use w/ any StarLink Model)
  • IBR-TOUCH-WL Optional Touchscreen, 1024 x 600 7" hi-res color for security and optional automation or video control (using StarLink Connect or IBR-ZREMOTE), wireless connectivity, powered by 12VDC adapter, supplied. Also available in hardwire vsn IBR-TOUCH
  • Download SLE-ANTEX Optional Omni Antenna Spec Sheet

  • DOWNLOAD STARLINK MAX CONNECT SPEC SHEET (A815)

Starlink Max
Optional Universal Indoor/Outdoor Performance Antennas, Complete with Ultra Premium LMR-Type Cabling
Starlink Max Starlink Max

StarLink Omni-X® SLE-ANTEX Series Are Universal, Marine-Grade Indoor/Outdoor Multi-Band, High-Gain Omnidirectional Antennas

  • ncrease Cellular Transmission & Mounting Flexibility
  • Universal use with StarLink Cellular Communicators & those of other manufacturers
  • Rated for Outdoor Use - Marine Grade
  • All Applications: 5G LTE-M, LTE, 4G, 3G, CLR, PCS, DCS, AWS, IMT, ISM, WCDMA, cellular, WiFi and WiMax
  • Excellent 700MHz LTE-M/LTE performance
  • VSWR <1.5:1 for max power and signal range
  • RoHS Compliant
  • Complete: Including Mounting Hardware & 30, 50, 75 or 100’ premium low-loss LMR-type cable, plus, ground fault isolation plate (used for comm'l fire)

  • Omni X Ordering Information:
  • SLE-ANTEXT30 Optional extended antenna w/ 30' ultra low-loss premium cable (9.144m) and complete hardware, including pole mount
  • SLE-ANTEXT50 As above, w/ 50' cable (15.24m)
  • SLE-ANTEXT75 As above, w/ 75' cable (22.86m)
  • SLE-ANTEXT100 As above, w/ 100' cable (30.48m)
  • Download SLE-ANTEX Optional Omni Antenna Spec Sheet
